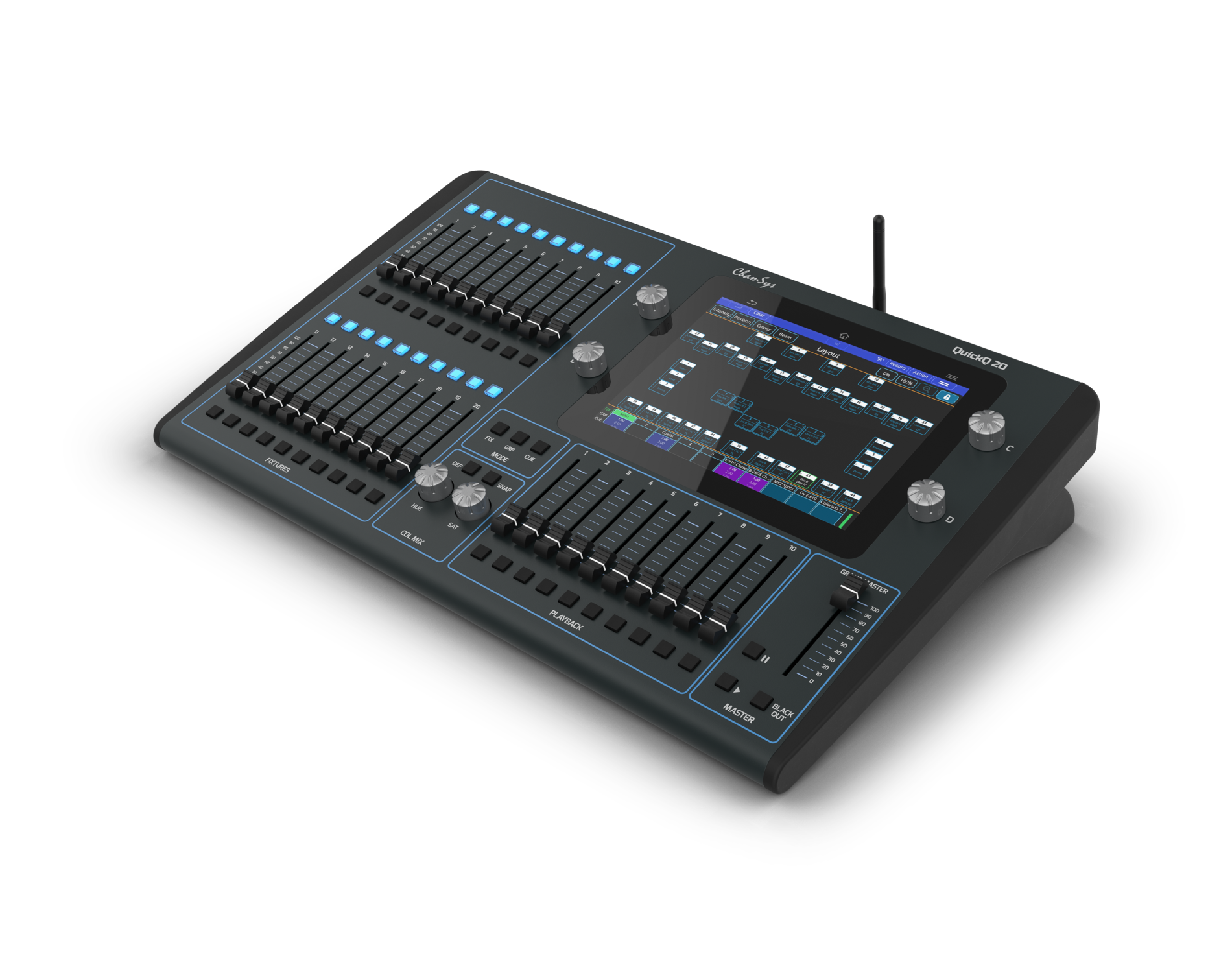

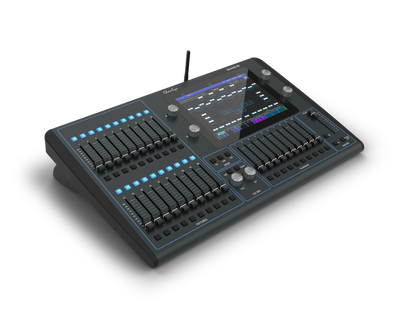

Chamsys QuickQ 20

A Light Console with 20 multi-function Fixture faders. 3 different modes, 10 multi-cue Playback faders, and a dedicated Grand Master fader.

$3,300.00
Quantity
  • Available NOW!
 More payment options
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Free Shipping No Extra Costs
Free Support Speak with a PRO!
Secure Checkout Secure Payment

Chamsys QuickQ 20

A Light Console with 20 multi-function Fixture faders. 3 different modes, 10 multi-cue Playback faders, and a dedicated Grand Master fader.

Full Description

QuickQ 20 is part of ChamSys QuickQ range of user friendly and affordable lighting control consoles. The QuickQ 20 is the perfect choice console for control of dimmer, LED colour mixing and moving light fixtures. The console features a large 9.7 inch touch screen utilising a smart phone like interface for setup, programming and playback of your show.



The console can automatically detect and patch RDM compliant fixtures and features in-built WIFI capabilities enabling remote connection to the free QuickQ app available on iOS, Android and Windows tablets and phones. Easily connect the app by simply scanning the QR code on the console display.



The console has easy-to-understand buttons and faders, simple colour selection and intensity control tools, a large touch screen with zooming and scrolling at your fingertips, as well as a simple cue/chase system for playback. Specifically aimed at the novice user, the QuickQ interface easily leads you through setup, programming and operation of the console.



The console has a free to download offline programming software available for Mac and Windows. You can program your show on your computer, save it onto a flash drive and load it onto the QuickQ console.



QuickQ uses ChamSys extensive and continuously updated personality library with over 45,000 personalities.



QuickQ shows are compatible can be loaded onto any MagicQ system allowing future progression onto ChamSys more advanced MagicQ range of consoles.

Features

2 Universe Console, ideal for conventional, LED and

moving light control

• Intuitive Smart phone style Interface

• Inbuilt Wi-Fi for connection of iOS and Android remotes

• Large 9.7” Multi-touch display

• Multi-Touch gesture support for fixture control

• RDM Support for RDM Autopatch

• Free QuickQ designer offline software

• 10 Multi-function playbacks

• Supports connection to Free MagicVis Visualiser

• Multi Function fixture faders with Fixture, Group or

Cue mode

• Supports connection to Free MagicVis Visualiser

Hardware specifications

  • Universes supported: 2
  • Direct DMX Outputs 5-Pin XLR: 2
  • Master Playback Faders: 10
  • Multi-Function Fixture Faders: 20
  • Bump Buttons: Yes
  • Attribute Encoders: 4
  • Dedicated Hue/Saturation Encoders: Yes
  • Inbuilt 9.7” Multi-touch Display: Yes
  • External Monitor: 1920 x 1080 HDMI
  • Inbuilt Wi-Fi: Yes
  • Network Port: 1
  • USB Ports: 2
  • Audio Input: 1
  • Audio Output: 1*
  • MIDI Ports in/out: Yes*

What is in the box?

  • USB Desk light: 1
  • Dust cover: 1
  • Tablet stand: 1
  • Wi-Fi Antenna: 1
  • 12V power supply: 1
  • IEC power cable: 1

Software specifications

  • Max Number of DMX Channels: 1024
  • Max Number of Fixtures Supported: 1024
  • Max Number of Cue Stacks: 10
  • Max Number of Chases: 10
  • Midi & Midi Timecode Supported: Yes
  • OSC Supported: Yes
  • RDM Autopatch for fast show patching
  • Fixture library of over 30,000 fixture files
  • Built in FX generator
  • Colour picker and Gel inbuilt Gel library
  • Offline designer software available for Windows and Mac

Console Weights and Dimensions

  • Width: 565mm (22.2 inches)
  • Depth: 350mm (13.8 inches)
  • Height: 106mm (4.2 inches)
  • Weight: 5.2kg (11.46 lb)
