Blackmagic Design

ATEM 2 M/E Advanced Panel 30

The ATEM 2 M/E Advanced Panel 30 is a sophisticated control interface for the separately available ATEM Constellation Switcher from Blackmagic Design.

BMD-SWPANELADV2ME30

$8,675.00
Quantity
  • Available NOW!
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Free Shipping No Extra Costs
Free Support Speak with a PRO!
Secure Checkout Secure Payment

ATEM 2 M/E Advanced Panel 30

The ATEM 2 M/E Advanced Panel 30 is a sophisticated control interface for the separately available ATEM Constellation Switcher from Blackmagic Design.

Full Description

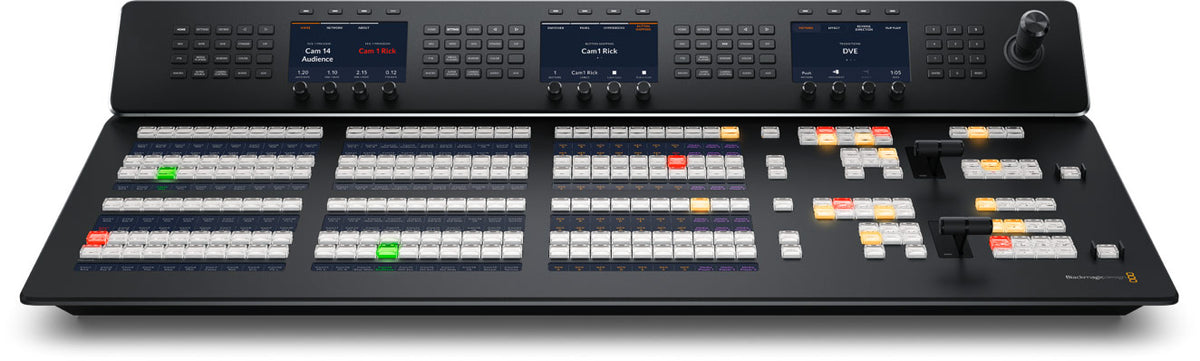

The ATEM 2 M/E Advanced Panel 30 is a sophisticated control interface for the separately available ATEM Constellation Switcher from Blackmagic Design. Use the numerous buttons, knobs, two fader bars, and a 3-axis joystick to customize your panel's program/preview operation.

Applications:
Designed for complex live productions, the ATEM 2 M/E Advanced Panel 30 enables you to customize, monitor, and switch your live broadcast events with features such as camera switching, executing transitions, fades, DVE effects, and 12 on-air indicators. The ATEM 2 M/E Advanced Panel 30 connects to your switcher via 10/100/1000 BaseT Ethernet and incorporates four Ethernet loop outputs for connecting to another panel or to a media-management computer.
Compatibility:
Provides pro switching controls for the ATEM Constellation HD line of switchers

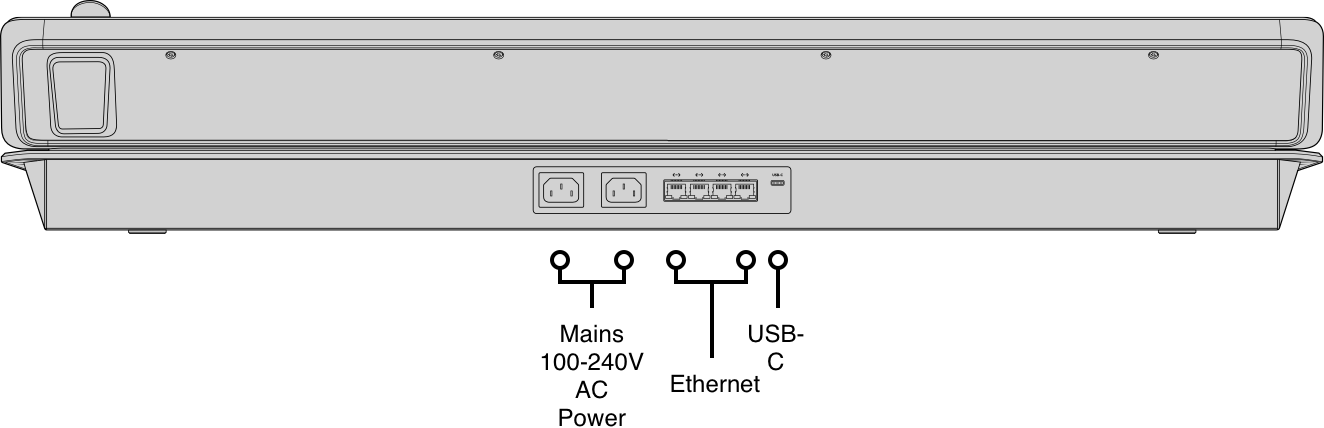

Interface:
  • Four 10/100/1000 BASE-T Ethernet ports with loop output for linking to additional control panels or computers
  • USB Type-C for firmware updates
Cross-Points:
Tri-color LED cross-point buttons; 30 direct cross-points, and 60 shifted cross-points
Mix Effect Rows:
Two M/E rows, 30 input buttons per row
LCD Menu Displays:
Three system control LCDs for each row with custom labeling for all rows and input buttons
Controls:
One 3-axis joystick, one numeric keypad, and two fader bars
On-Air Indicators:
12 indicators let you easily see which feeds are on air
DSK Selectors:
Four transition previews with auto, cut, and tie/preview options

Features

  • Panel for ATEM Constellation Switcher
  • 2 x M/E Rows, 30 x Input Buttons Each
  • 3 x System Control LCDs for Each Row
  • High-Quality Buttons/Knobs/Controls
  • 4 x GbE Ethernet Ports with Loopouts
  • Custom Labeling, Redundant Power Supply
  • 12 On-Air Indicators, 30 Cross-Points
  • 3-Axis Joystick, Keypad, 2 x Fader Bars
  • USB Type-C Input for Firmware Updates
