ATEM Micro Panel

$675.00

Blackmagic Design SKU: BMD-SWPANELAA1ME10

Available Now!

This order qualifies for FREE shipping!

Questions? Comments? Concerns?
Talk to a Pro!

(757) 685-5862

Blackmagic Design ATEM Micro Panel

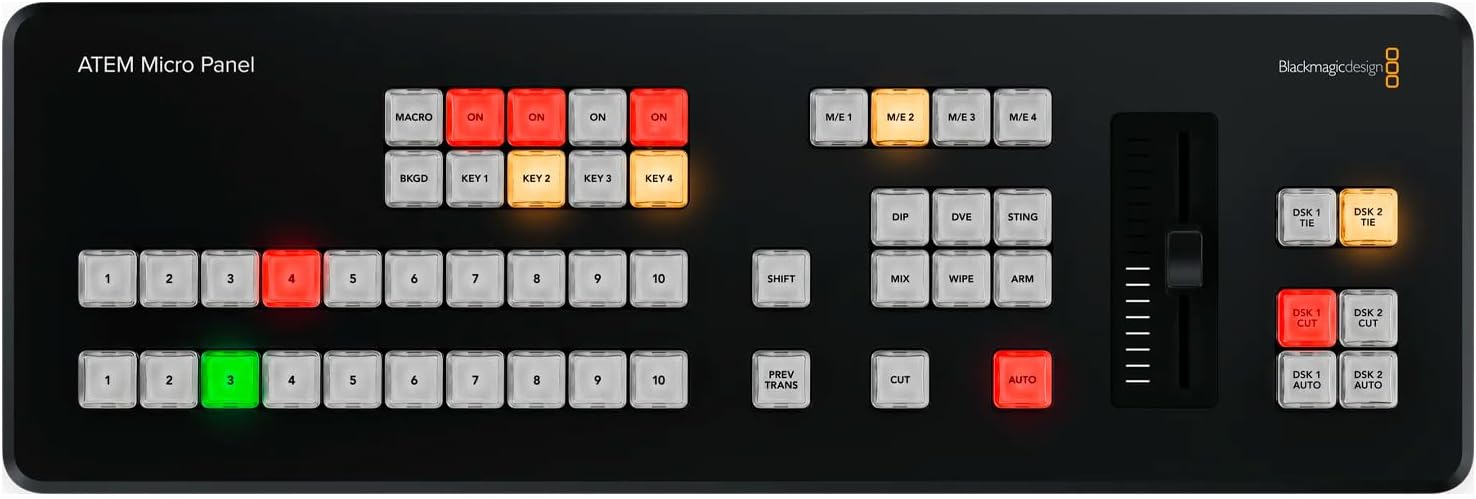

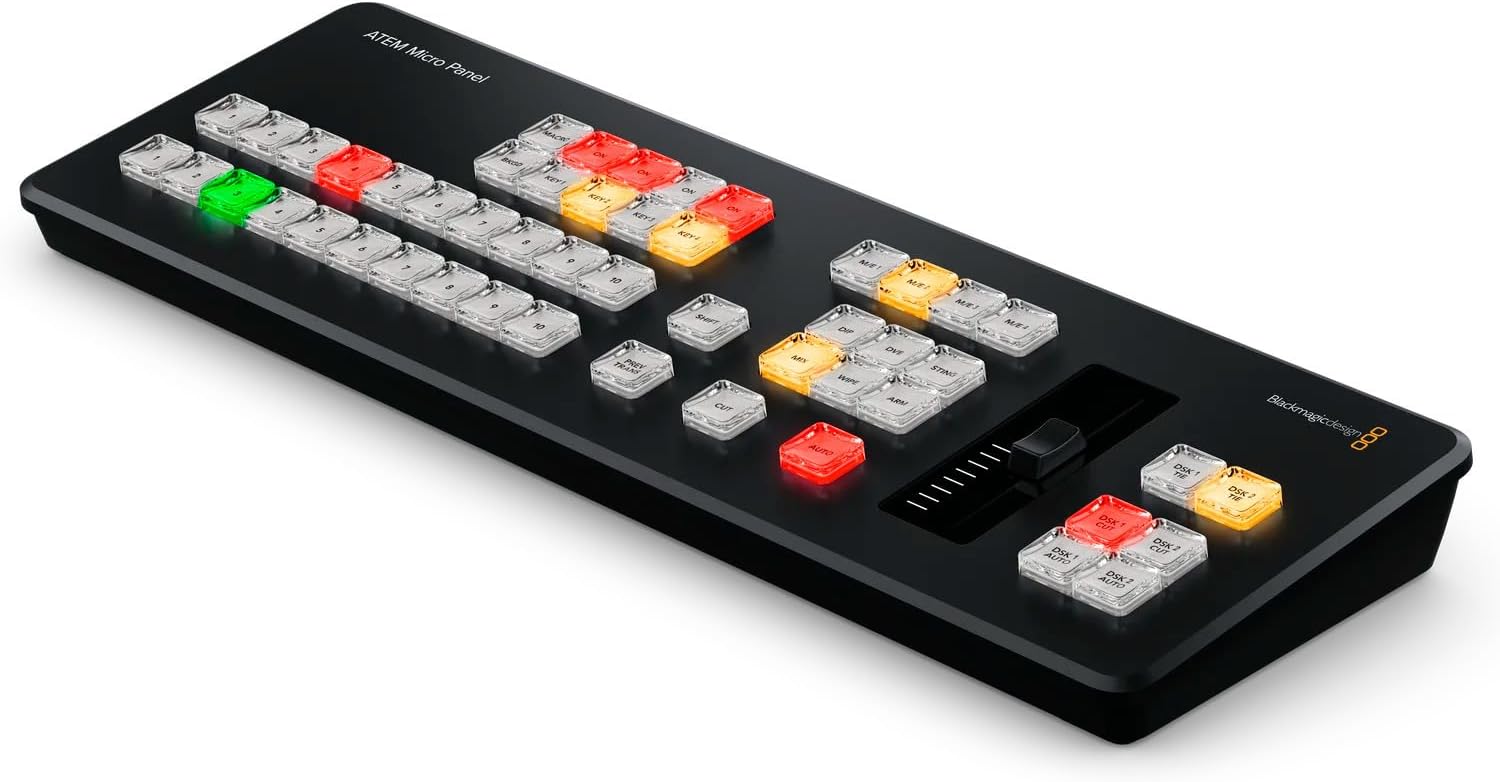

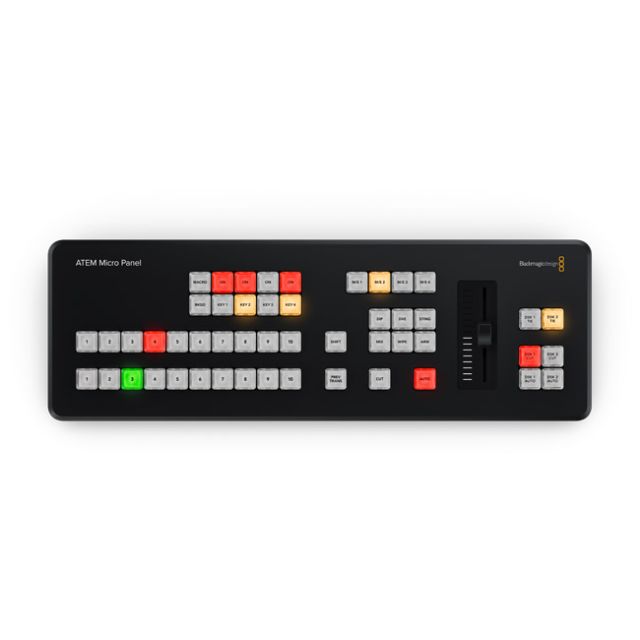

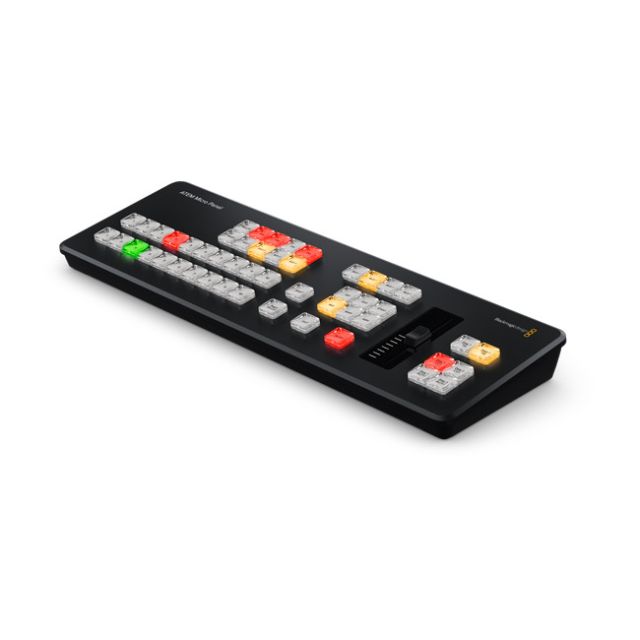

The ATEM Micro Panel is a fantastic hardware panel for physical switching while using ATEM Software Control. It features the same professional panel design as ATEM Advanced Panels with high end backlit buttons and a low profile manual transition fader that keeps the ATEM Micro Panel incredibly portable. There are two rows of ten buttons for program and preview with a shift button to access up to 20 sources. Plus, buttons for upstream and downstream keyers, transitions, preview transition, macros and the four M/E buttons mean it can work with the biggest switchers. Connect ATEM Micro Panel to the ATEM Software Control computer by USB-C or the big internal battery allows wireless connection by Bluetooth for hours!

Connections

Computer Interface

USB Type‑C.

Bluetooth

Bluetooth 5.1 LE



Product Specifics

Number of Mix Effects Rows

1



Direct Cross Points

10



Shifted Cross Points

20



Crosspoint Button Type

Tri-Color LED



Preview Transition

1



Switching Type Buttons

CUT and AUTO



Transition Type Buttons

DIP, DVE, STINGER, MIX, WIPE.



M/E Select Buttons

4



Upstream Key Buttons

4 with ON/OFF



Downstream Key Buttons

2 with ON/OFF



Transition Slider

1



Software

Software Applications

ATEM Micro Panel controls ATEM Software Control Panel running on the host computer.



Operating Systems

Mac 13.0 Ventura,
Mac 14.0 Sonoma or later.



Windows 10 and 11.

Power Requirements

Power Supply



Internal battery with power switch.

USB-C port for external power supply and battery charging.



Power Usage

3 W max.



Physical Specifications



Environmental Specifications



Operating Temperature

5° to 40° C (41° to 104° F)



Storage Temperature

-20° to 45° C (-4° to 113° F)



Relative Humidity

0% to 90% non‑condensing

Warranty

12 Month Limited Manufacturer’s Warranty.

What's Included

ATEM Micro Panel

Welcome wallet with QR code for software download
