Blackmagic Design

ATEM 1 M/E Constellation HD

The ATEM 1 M/E Constellation HD is a pro live switcher with 10 inputs and 6 outputs for streaming and broadcasts.

BMD-SWATEMSCN2/1ME1/HD

$995.00
Quantity
  • Available NOW!
 More payment options
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Free Shipping No Extra Costs
Free Support Speak with a PRO!
Secure Checkout Secure Payment

ATEM 1 M/E Constellation HD

The ATEM 1 M/E Constellation HD is a pro live switcher with 10 inputs and 6 outputs for streaming and broadcasts.

Full Description

ATEM 1 M/E Constellation HD is a high definition live production switcher packed with advanced features! The single M/E design includes 10 standards converted 3G‑SDI inputs and 6 independent 3G‑SDI aux outputs! It also includes a USB webcam output, DVE, chroma keyers, media players, multiview and more!

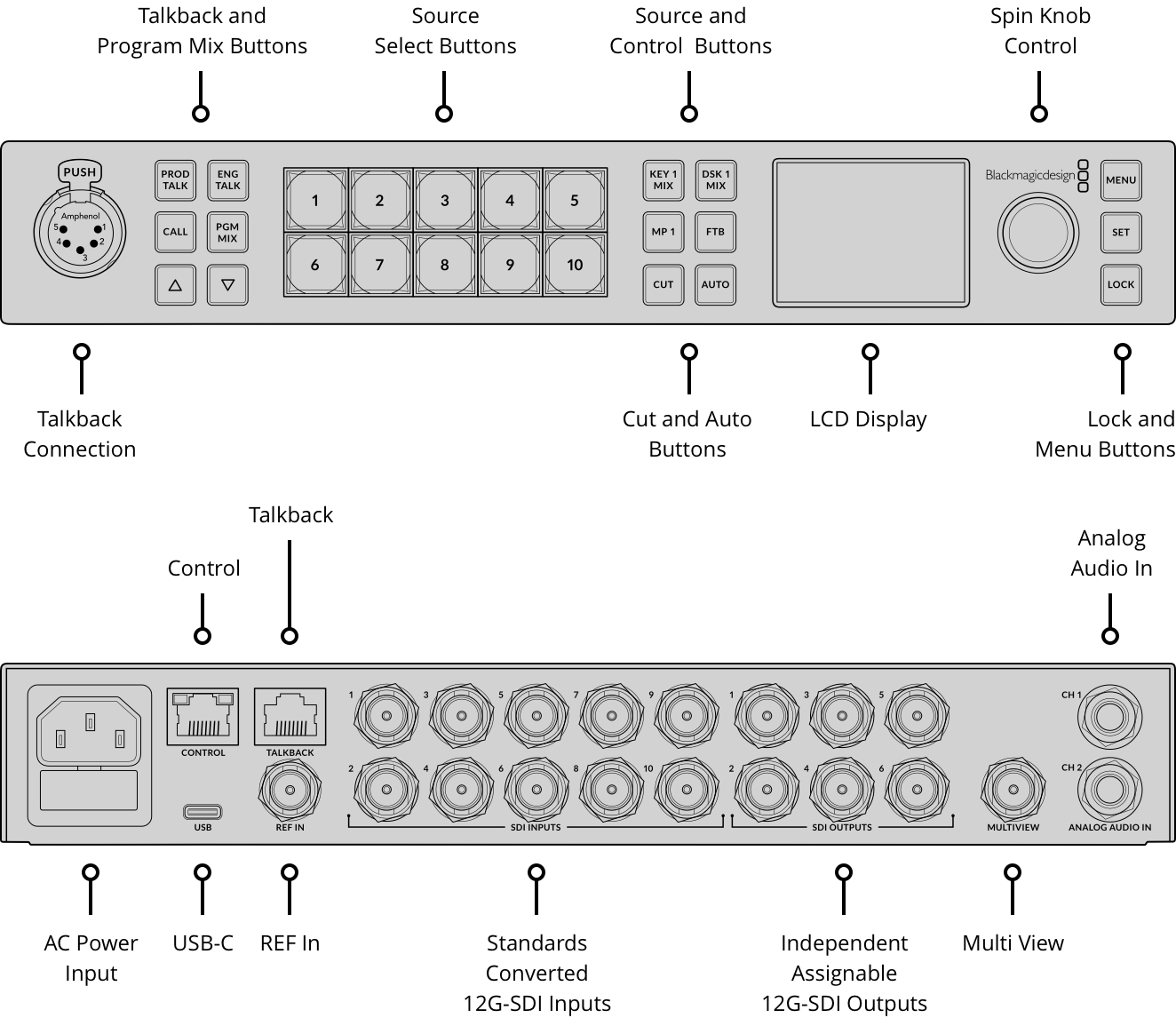

Connections

  • Total Video Inputs: 10
  • Total Video Outputs: 6
  • SDI Rates: 1.5G, 3G
  • Total Audio Inputs: 2 x balanced 1/4 inch Jack, 1 x 5 pin XLR Talkback.
  • Total Audio Outputs: 1 x 5 pin XLR Talkback.
  • SDI Audio Inputs: 8 Ch embedded audio on all SDI inputs.
  • SDI Audio Outputs: 16 Ch embedded audio on all SDI outputs.
  • Timecode Connections: None
  • Reference Input: Tri-Sync or Black Burst.
  • Video Input Re-Sync: On all 10 inputs.
  • Frame Rate and Format Converters: On all 10 inputs.
  • SDI Aux Outputs: Any of the 6 SDI outputs.
  • SDI Preview Outputs: Any of the 6 SDI outputs.
  • SDI Program Outputs: Any of the 6 SDI outputs.
  • Down Converted SDI Program Output: None
  • Webcam Output: 1 x USB-C supporting 720p or 1080p at PGM frame rate.
  • Total Multi Views: 1 x 3G-SDI
  • Control Panel Connection: Ethernet. Direct connection between panel and chassis, or via network.
  • Internal Timecode Generator: Yes
  • Talkback: RJ45 for 3rd party talkback systems.
  • Tally Output: Added via ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included).
  • Ethernet: Supports 10/100/1000 BASE-T.
  • Computer Interface: 1 x USB-C supports USB 2.0

Standards

  • SD Video Standards: None
  • HD Video Standards: 720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60
    1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
  • SDI Compliance: SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B.
  • Video Sampling: 4:2:2
  • Color Precision: 10-bit.
  • Color Space: REC 709
  • SDI Auto Switching: Automatically detects between 1.5G-SDI and level A or level B 3G-SDI.

What is in the box?

  • ATEM 1 M/E Constellation HD
  • Welcome wallet with QR code for software download

Software

  • Control Panel Included: ATEM Software Control Panel included free for Mac 11.11 Big Sur, Mac 12 Monterey or later and Windows 10 or 11.
  • Software Updates: Using USB or Ethernet connection directly connected to Mac OS or Windows computers. Includes ATEM Setup Utility.
  • Configuration: Set via ATEM Software Control Panel, excluding ATEM chassis IP address which is set via the ATEM Setup Utility connected via USB to chassis.

Processing

  • Processing Delay: < 10 lines.
  • Audio Mixer: 28 Channel mixer, Selectable On/Off/Audio-Follow-Video, Level and Peak metering, Master gain control, 6 band parametric EQ, Dynamics including Expander, Gate, Compressor and Limiter.
  • Down Conversion: None

Product Specifics

  • Upstream Keyers: 4
  • Downstream Keyers: 1
  • Advanced Chroma Keyers:4
  • Talkback Support: Yes
  • Mix Minus Support: Yes
  • Linear/Luma Keyers: 5
  • Transition Keyer (Stinger/DVE): 1 Stinger, 1 DVE.
  • Total Number of Layers: 7
  • Pattern Generators: 5
  • Color Generators: 2
  • Control Panel: Front fascia emergency switching, software or optional hardware panel.
  • Routable Windows: 16
  • Tally: Red for program and green for preview indication.
  • Windows Source Labels: Yes
