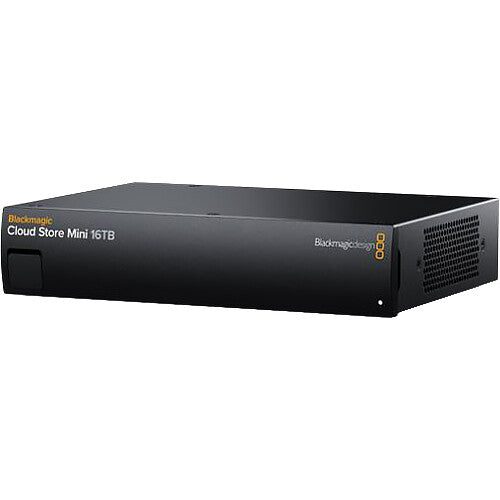

The Blackmagic Cloud Store Mini is a fast network storage solution in a compact rack mount design. It features a high speed 10G Ethernet connection and four internal M.2 flash memory cards operating in parallel RAID 0 for extremely fast file access. It’s fast, even with lots of simultaneous users all accessing files at the same time!

Connections

10G Ethernet Ports - 1 x Ethernet 100/1000/10G BASE-T

1G Ethernet Port - 1 x 100/1000 BASE-T

USB-C Port - 1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB

HDMI Monitor Outputs - 1

Computer Interface - USB-C or Ethernet for shared file access, configuration and software updates.

File Sharing Protocol

Protocol - SMB

Computer Connections - 50 max.

Cloud Synchronization

Compatible Services - Dropbox. Google Drive

Storage

Storage Type - M.2 NVMe SSD

Total Capacity - 16TB

Displays

HDMI Monitor Out Standards - 1080p50, 1080p59.94, 1080p60

Monitor Out Displays - Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph.

Status Indicator - Front panel LED illuminates white indicating normal operation or red indicating disk fault.

Device Control

External Control - USB-C or Ethernet for configuration and software updates.

Software

Software Included

Blackmagic Cloud Setup Utility

Blackmagic Proxy Generator Lite

Internal software upgrade via Blackmagic Cloud Setup using USB-C port.

Operating Systems - Mac 14.3 Sonoma or later. Windows 10, 64-bit. Windows 11.

Power Requirements

Power Supply - Internal 100 - 240V AC 50/60Hz with IEC C14 mains input.

Power Inputs - 1 x IEC C14 mains input. - 1 x 12V DC locking 5.5 mm barrel connector.

Power Usage - 35W

Physical Specifications

Environmental Specifications

Operating Temperature - 0° to 40° C (32°to 104° F)

Storage Temperature - -20° to 60° C (-4° to 140° F)

Relative Humidity - 0% to 90% non-condensing

Warranty - 12 Month Limited Manufacturer’s Warranty.
