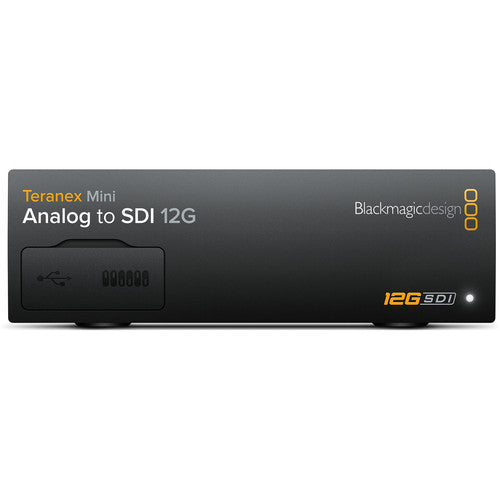

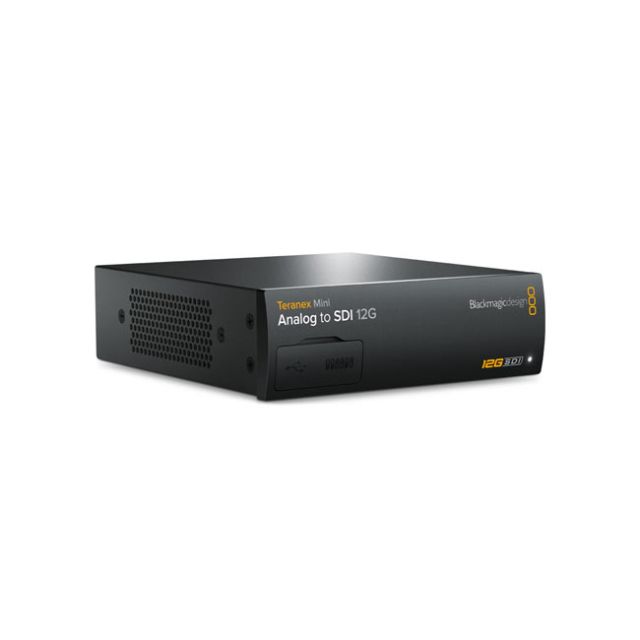

Teranex Mini - Analog to SDI 12G
Convert from analog video to 12G-SDI. Convert incoming analog video signals to SD, HD, 6G and 12G-SDI. Ideal for converting your analog devices such as Betacam SP, VHS, set top boxes, gaming consoles and HDV cameras to incredible quality SD/HD/Ultra HD SDI video up to 2160p60.

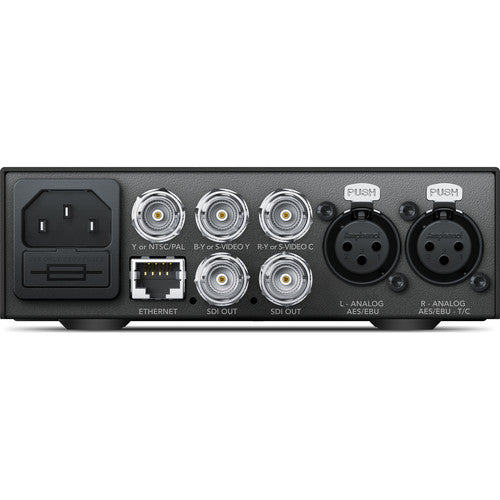

Connections
Analog Video Input
Component SD/HD, NTSC, PAL and S‑Video.
SDI Video Output
User selectable to SD, HD and 12G-SDI.
Analog Audio Input
2 channels professional balanced analog audio via XLR connectors. Right XLR can be configured for timecode input.
AES/EBU Audio Input
4 channels professional 110Ω balanced digital audio via XLR connectors. Right XLR can be configured for timecode input.
Multi Rate Support
SDI output switchable between HD for composite and S-Video and Ultra HD for component HD.
Updates and Configuration
USB or Ethernet.
Re-Clocking
Yes
Standards
SDI Compliance
SMPTE 292M, SMPTE 259M,SMPTE 296M, SMPTE 424M-B,ITU-R BT.656 and ITU-R BT.601
SDI Video Rates
SDI video connections are switchable between standard definition and high definition.
SDI Video Sampling
4:2:2 and 4:4:4.
SDI Audio Sampling
Television standard sample rate of 48 kHz and 24-bit.
SDI Color Precision
YUV 4:2:2 and RGB 4:4:4 in HD, 2K and 4K.
SDI Color Space
REC 601, REC 709
SDI Format Support
625/25 PAL, 525/23.98 NTSC, 525/29.97 NTSC, 1920 x 1080i50, 1920 x 1080i59.94, 1920 x 1080i60, 1280 x 720p50, 1280 x 720p59.94, 1280 x 720p60, 3840 x 2160p25, 3840 x 2160p29.97, 3840 x 2160p50, 3840 x 2160p59.94.
Analog Format Support
625/25 PAL, 525/23.98 NTSC,525/29.97 NTSC, 1920 x 1080i50,1920 x 1080i59.94, 1920 x 1080i60,1280 x 720p50, 1280 x 720p59.94,1280 x 720p60.
Analog Color Space
REC 601, REC 709
Analog Color Precision
4:2:2
Software
Software Control
Mac OS X™ and Windows™ software upgrade via USB and Ethernet
Internal Software Upgrade
Via included updater application.
Settings Control
Basic Settings Control
Mini Switches, USB and Ethernet via free software utility
Optional Front Panel Control
Front mounted Smart Panel with LCD, rotary knob and six settings buttons
Power Requirements
Power Supply
1 x built-in international AC power supply with IEC C14 inlet. IEC Power cable required. 90 - 240V AC Input.
Power Over Ethernet
Can be powered via 48V DC using PoE (power over ethernet).
Power Consumption
15 Watts
Operational Voltage Range
90 - 240V AC
Physical Specifications
Environmental Specifications
Operating Temperature:
0°to 40°C (32° to 104°F)
Storage Temperature:
-20°to 60°C (-4° to 140°F)
Relative Humidity:
0% to 90% non-condensing
What's Included
Teranex Mini - Analog to SDI 12G
Software SD Card
Warranty
3 year Limited Manufacturer’s Warranty.
