Blackmagic Design

Micro Converter SDI to HDMI 3G

Super compact and rugged, the Micro Converter SDI to HDMI 3G from Blackmagic Design enables you to use HDMI-input monitors and televisions for production monitoring.

BMD-CONVCMIC/SH03G

$75.00
Quantity
  • Available NOW!
  • American Express
  • Apple Pay
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Free Shipping No Extra Costs
Free Support Speak with a PRO!
Secure Checkout Secure Payment

Micro Converter SDI to HDMI 3G

Super compact and rugged, the Micro Converter SDI to HDMI 3G from Blackmagic Design enables you to use HDMI-input monitors and televisions for production monitoring.

Full Description

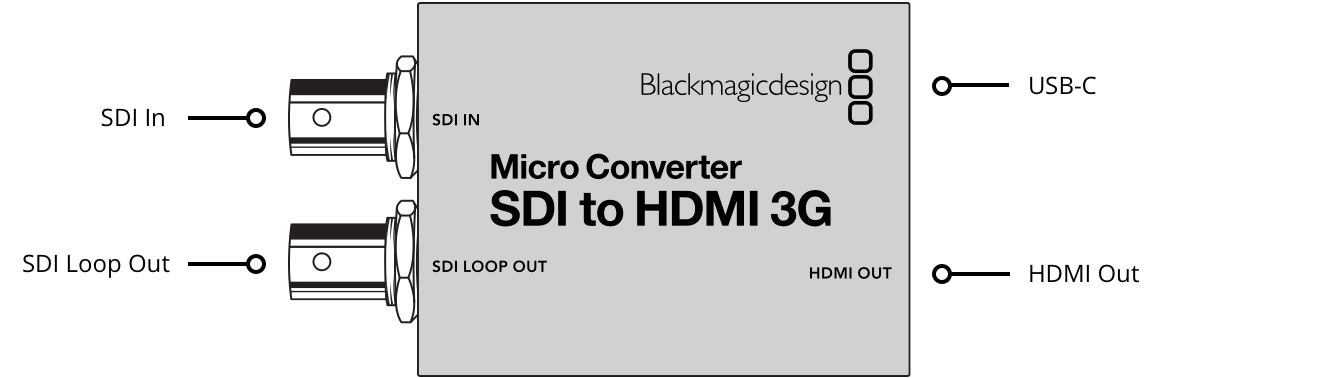

Super compact and rugged, the Micro Converter SDI to HDMI 3G from Blackmagic Design enables you to use HDMI-input monitors and televisions for production monitoring. This compact converter has one SD/HD/3G-SDI input, one HDMI output, and one SD/HD/3G-SDI loop output. It includes a 17-point 3D LUT that can be used to calibrate HDMI- or SDI-input monitors and it can output a LUT for viewing via the SDI loop output. The Micro Converter SDI to HDMI 3G also features automatic SD, HD, and Level A and B SDI detection and support for a wide range of pro broadcast resolutions including cine-style 48 fps.

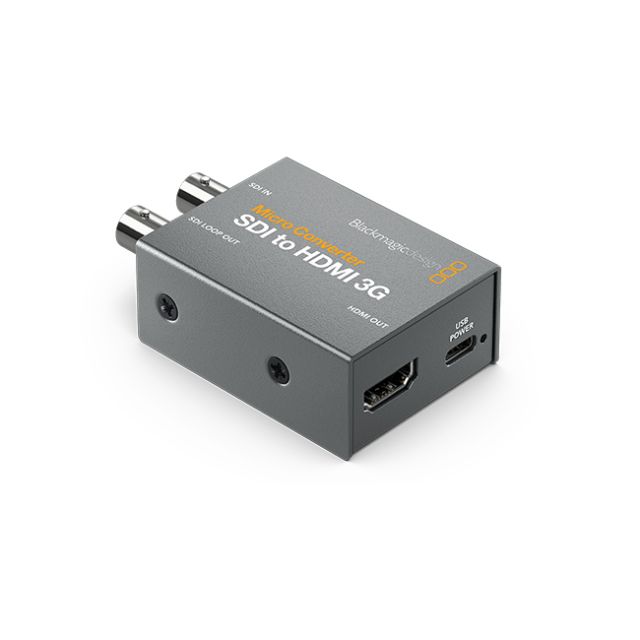

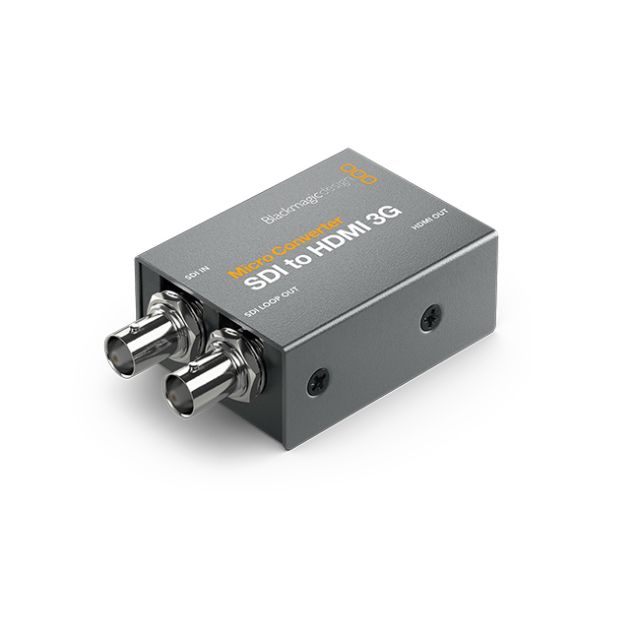

This pocket-sized converter features a sturdy metal housing with power and signal LED status indicators and rugged connector interfaces. A USB Type-C port enables the SDI to HDMI 3G converter to easily connect to and be powered by large-screen monitors, laptops, desktop computers, or projectors. You can also power this converter using the separately available 100-240 VAC power supply, complete with four international socket adapters.

Features
HDMI & SDI Outputs
  • One SD/HD/3G-SDI input
  • One HDMI output and one SD/HD/3G-SDI loop output
Compact, Rugged Design
  • Robust metal housing and rugged connectors
  • USB Type-C port for powering via a compatible component like a monitor or laptop
  • Updatable via the USB Type-C port and your Mac or PC
3D LUT Support
  • Supports a 7-point 3D LUT for color calibrating your monitor, television, or projector
  • Outputs LUT for monitoring via SDI loop output
Wider Resolution Support
  • SDI support up to DCI 2Kp60
  • HDMI support up to 1080p60
Embedded Audio
  • Supports embedded HDMI input and embedded SDI output
LED Indicators
  • LED indicators for video and power signals
Versatile Power Options
  • Power from a monitor, laptop, or other component using the USB Type-C port
  • Separately available 100-240 AC power supply with four socket adapters

Features

  • 1x SD/HD/3G-SDI Input & 1 x Loop Output
  • 1 x HDMI Type A Output
  • DCI 2K SDI In/Out | 1080p60 HDMI Out
  • 3D LUT for Calibrating or Loop Output
  • SDI A/B Selection | USB Power
  • Embedded Audio
  • Compact, Rugged Design
  • LED Video & Power Signal Indicators
